Peroni Box Wrapper 12
Peroni Box Wrapper 12
Description

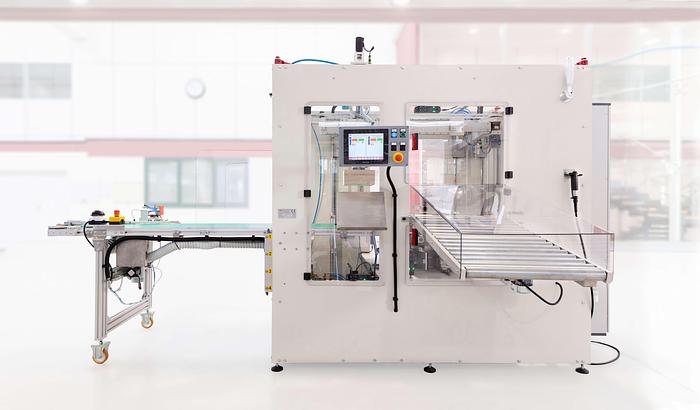

Fully modular system Semi-automatic machine to wrap high-quality rigid boxes. Quick-release block tool changeover Intuitive touch screen control up to 350 wrapped products per hour BOX WRAPPER 12 SEMI-AUTOMATIC MACHINE TO PRODUCE WRAPPED RIGID BOXES MAX 12cm HIGH Semi-automatic machine to wrap high-quality rigid boxes. Manual positioning of the glued paper onto the conveyor tape with teflon guides (paper glueing is made on a separate machine). Manual positioning of the box onto the glued paper with a pneumatic registration device.
Automatic tray registration & moving of the materials on to the automatic wrapping unit.
Automatic wrapping unit. Preset program memory for easy job recall according to the die-cut media being used Delivery unit.
Technical features
Box sizes: – min. 50 x 50mm (internal) – max. 450 x 450mm (external) – height min. 20mm – max. 120mm
Specifications
| Manufacturer | Peroni Ruggero |
| Model | Peroni Box Wrapper 12 |
| Condition | New |
| Stock Number | 000000000 |
| Materials | paper with gluing surface – max 700 x 1000 mm |
| Paper thickness | 110 – 150gr./m² |
| Job sizes-change over | 15 – 20 min. |
| Mechanical speed | 500 cycles/hour |
| Production capacity | 300/350 wrapped boxes/hour |
| Overall dimensions | 4000 mm x 2500 mm x 2200 mm |
